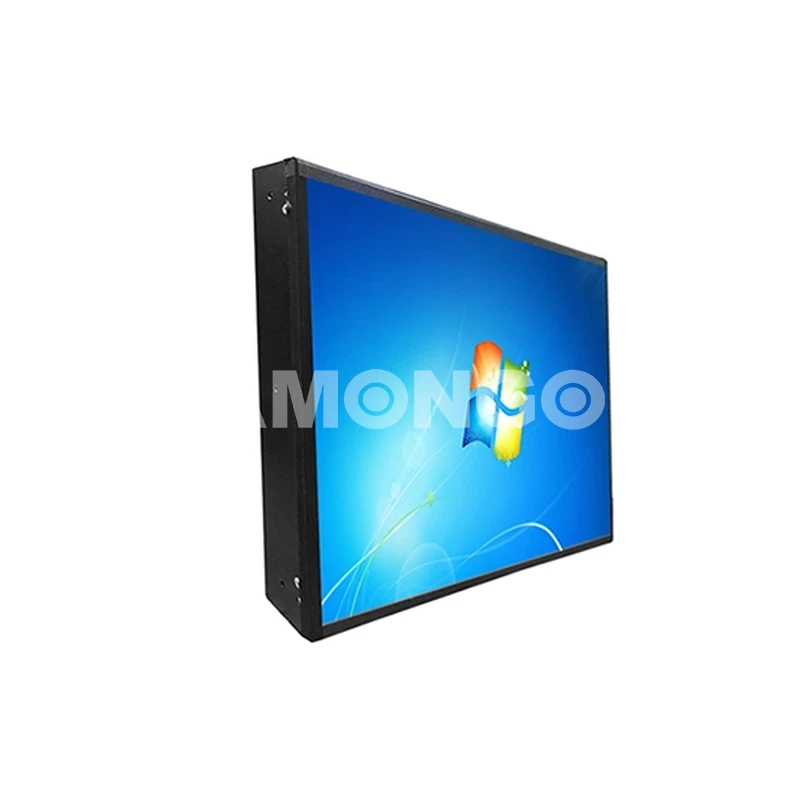

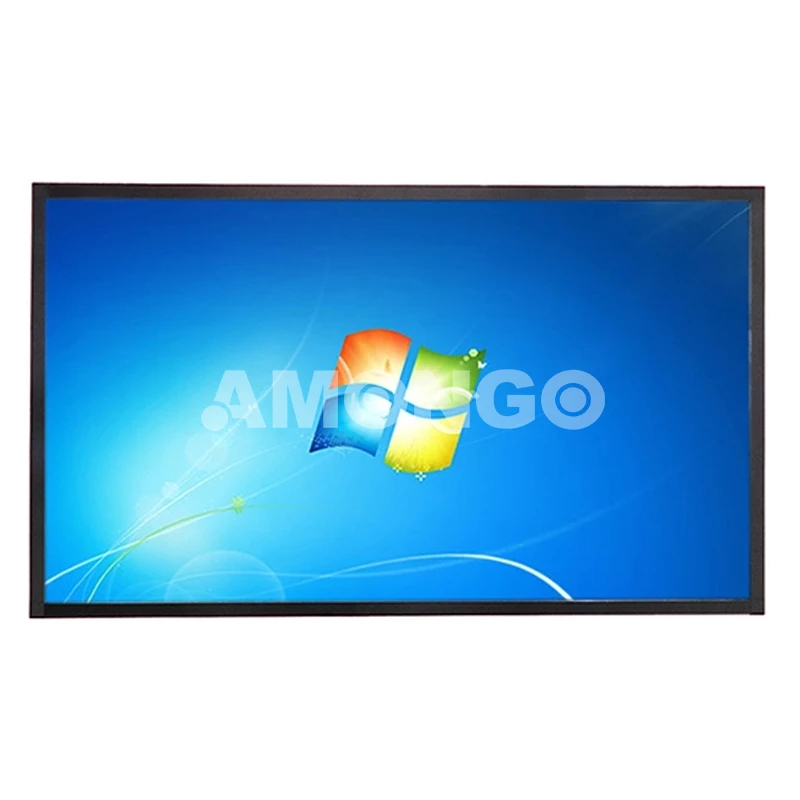

AMG-24OPHA01N1 is a normal-brightness LCD module with abundant interfaces and strong anti-interference capability. Featuring convenient and stable operation, it is widely applied in offices, intelligent safes, cafes and other fields.
Key features
Strong anti-interference performance
Vibration resistance: 1.5G

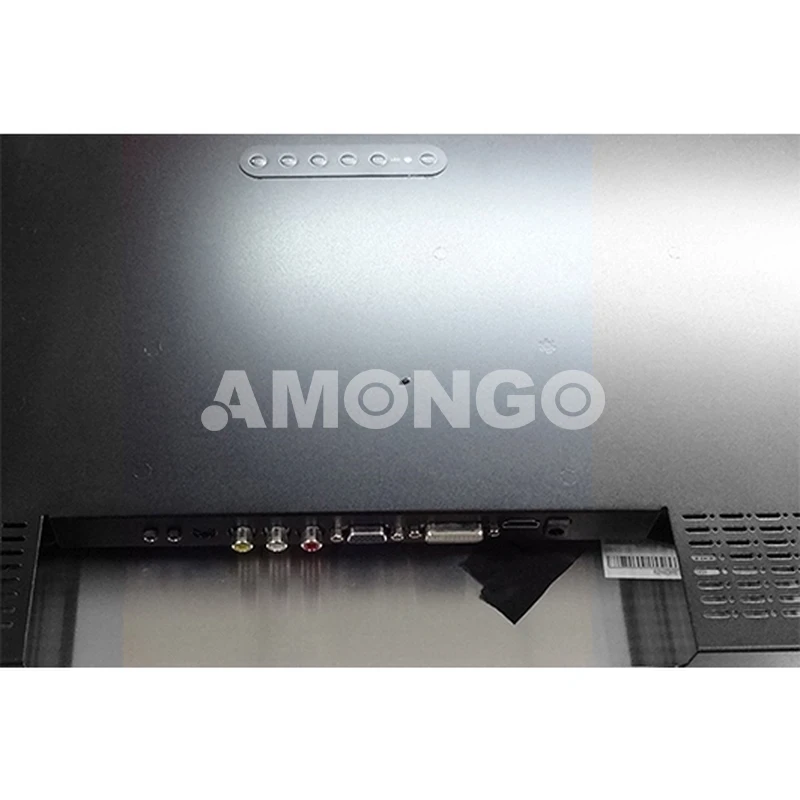

Supports four inputs: AV, DVI, HDMI, VGA, compatible with various host video outputs
Mounting & installation
Supports embedded, VESA and snap-in mounting
Integrated sleek appearance
Available as standard equipment solution
Typical applications
ATM machines
Intelligent safes
Indoor advertising screens
Unmanned vending cabinets
Branded 24 inch widescreen LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements
Customization service as required
Model Name | AMG-24OPHA01N1 |
Screen Size | 24" |
Active Display Area (mm) | 531.36 (H) x 298.89(V) |
Pixel Pitch (mm) | 0.27675(H) x 0.27675 (V) |
Display Mode | Normally Black |
Display Resolution (pixel) | 1920x1080 |
Contrast Ratio | 3000:1 |
Display Color | 16.7M |
Brightness (CD/㎡) | 250 |
Backlight | LED |
Viewing Angles (CR =10) | 178 (H); 178 (V) |
Response Time(Typ.Tr+Tf) | 25ms |
Signal Connector | VGA/DVI/HDMI/Audio |
Power Consumption | DC 12V |
Dimension(VxHxT) | 559x326.2x46 |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5(%RH)～90(%RH) |
Touch Screen(Optional) | Optional |
