Amongo's newly launched rear mount LCD monitor AMG-07OPIT01T1 is a customized model for bus application with the following features:
Top brand TFT panel adopted, perfect image with good color;
Equipped with industrial-grade components for long term running;
LED backlight for low power consumption to save more energy;
Advanced PCAP touchscreen technology used for easy operation, easy for maintenance; Front IP65, dustproof, vandal proof;
High-end mechanical design to meet tough environmental conditions and requirements;

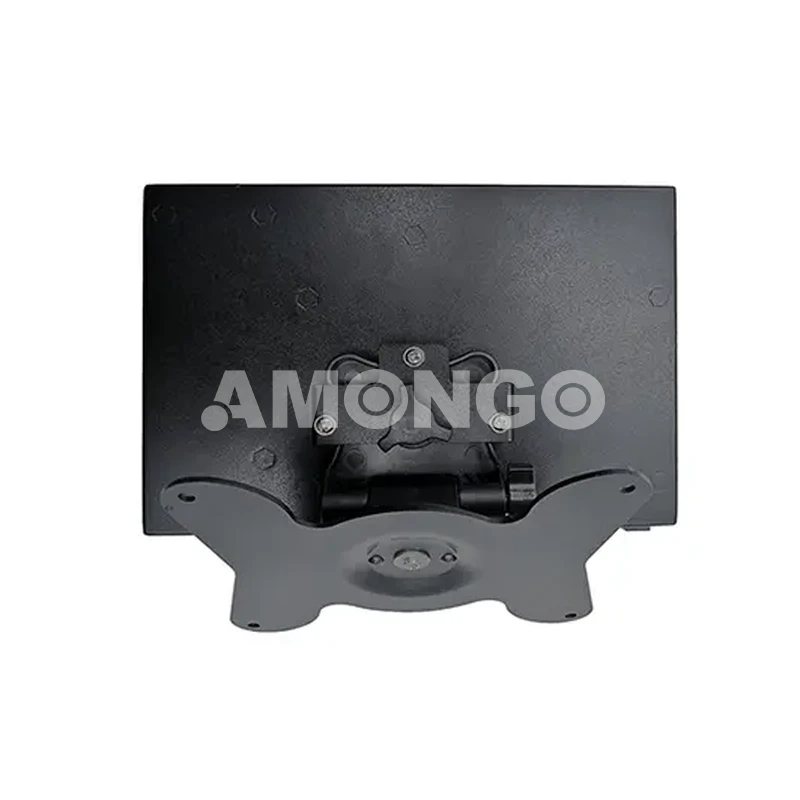

Mounting chassis available for easy installation
Model Name | AMG-07OPIT01T1 |
Screen Size | 7" |
Active Display Area(mm) | 152.4(H)x91.44(V) |
Pixel Pitch(mm) | 0.1905(H)x0.1905(V) |
Display Mode | Normally white |
Display Resolution(pixel) | 800x480 |
Contrast Ratio | 500:1 |
Display Color | 16.2M |
Brightness | 450nits |
Backlight | LED |
Viewing Angles(CR=10) | 130(H);110(V) |
Response Time(Typ.Tr+Tf) | 30ms |
Touch Screen | PCAP Touch(10 points) |
Tempered glass | Optional |

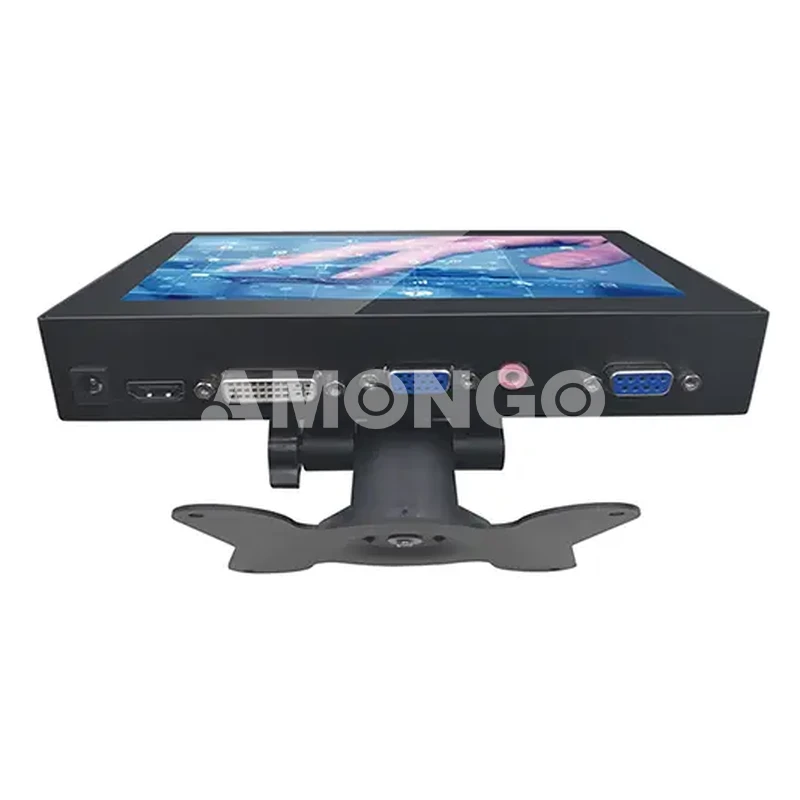

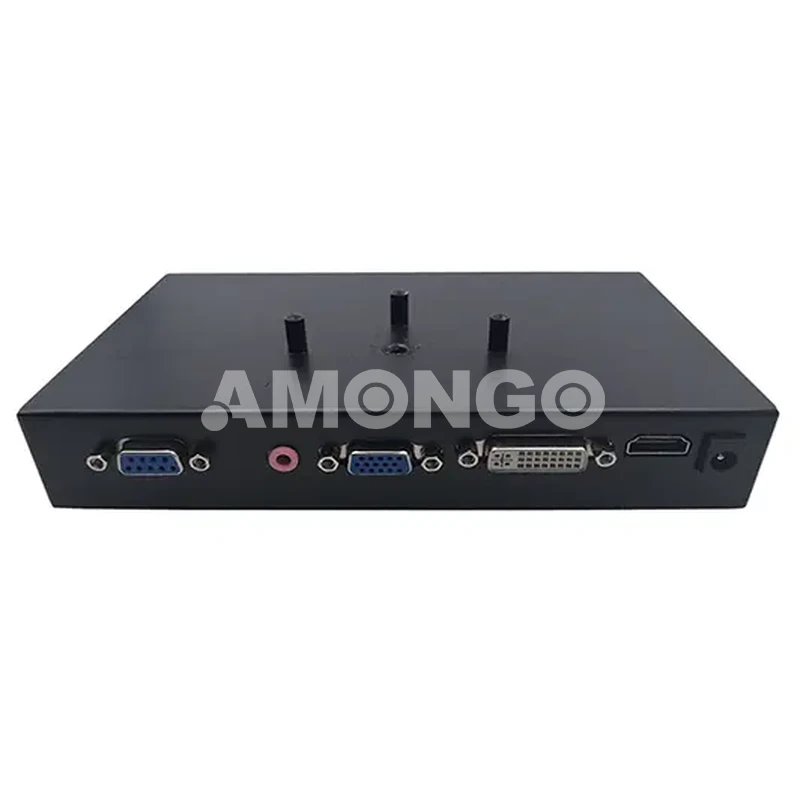

Signal Connector | VGA /DVI/HMDI/Auido |
Power Consumption | DC 12V |
Touch Controller(Optional) | RS232 |
Dimension(VxHxT)mm | 182.5x124.5x33 |
Operating Temperature | -20~70℃(non-condensation) |
Storage Temperature | -20~70℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
