PCAP Multi-touch screen
High brihtness/sunlight readable
Light senor/energy saving
IP65 waterproof,vandal-proof,dust-proof
Full-surface scratch-resistant design,MoHs 7
Application:
Semi-outdoor Kiosk/AFC/Industrial automation etc

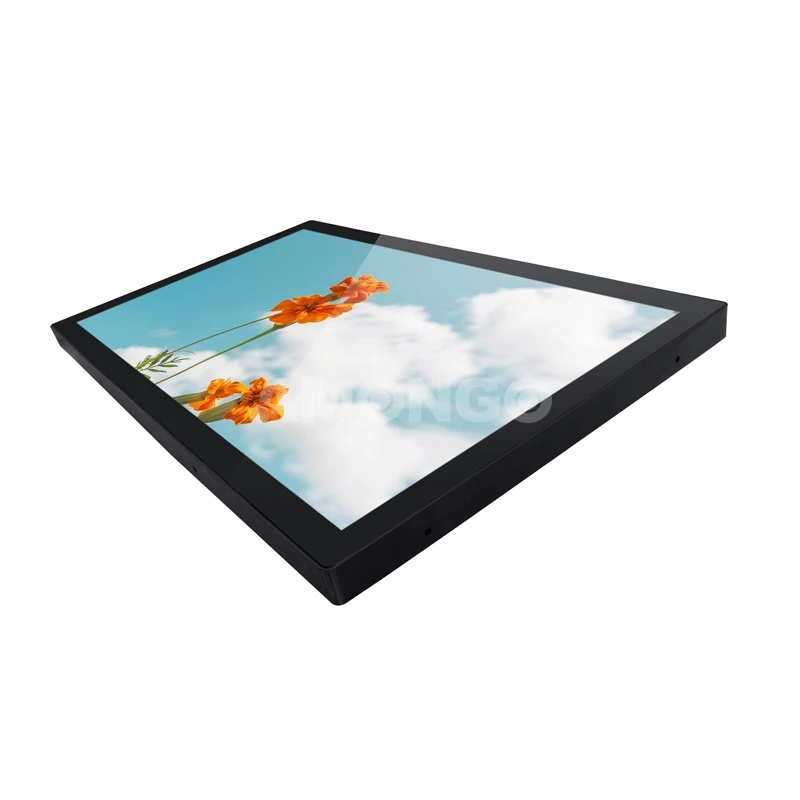

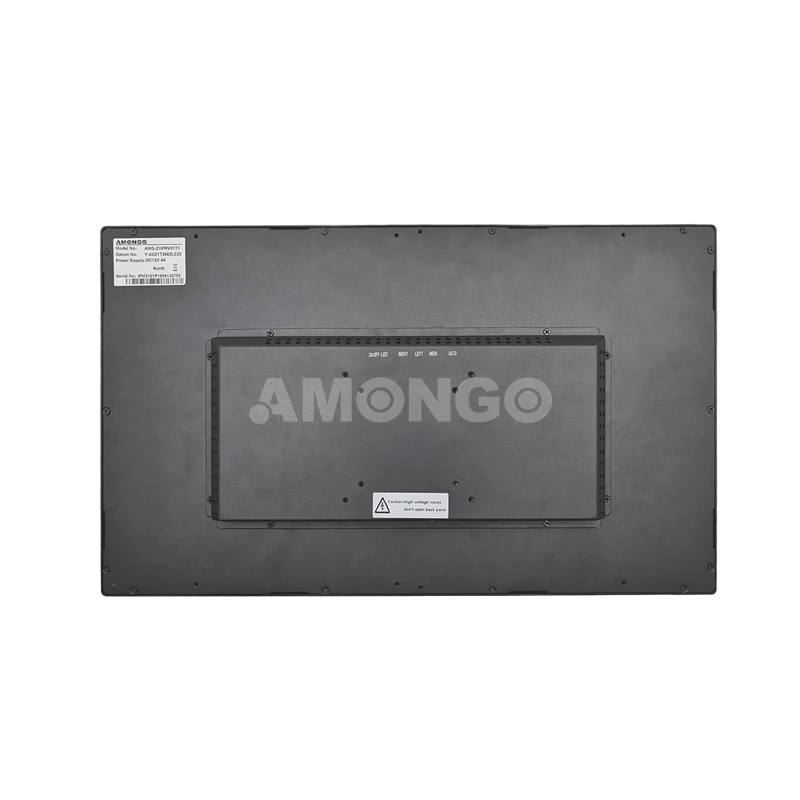

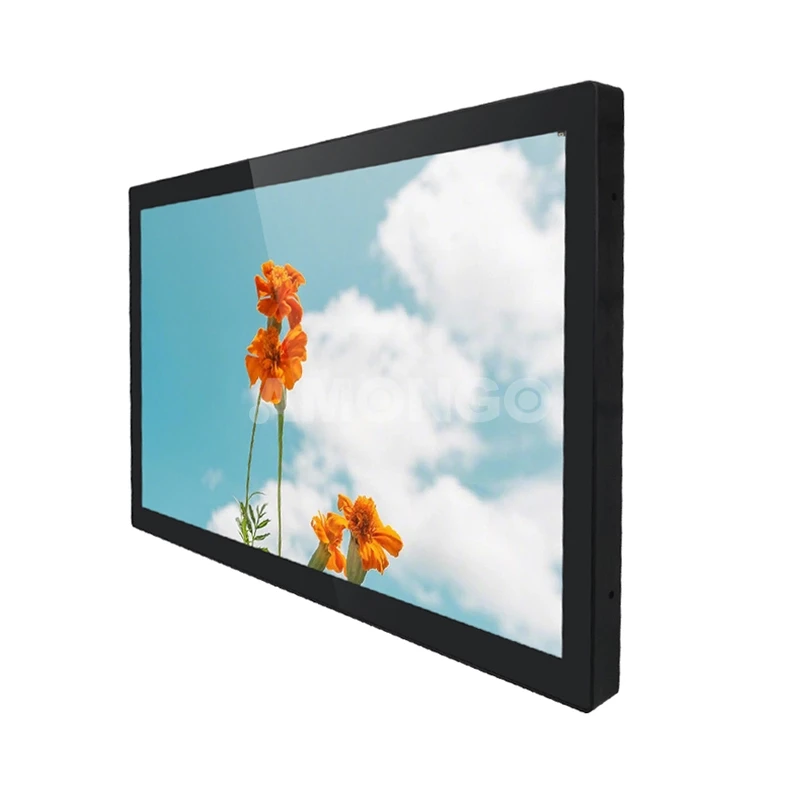

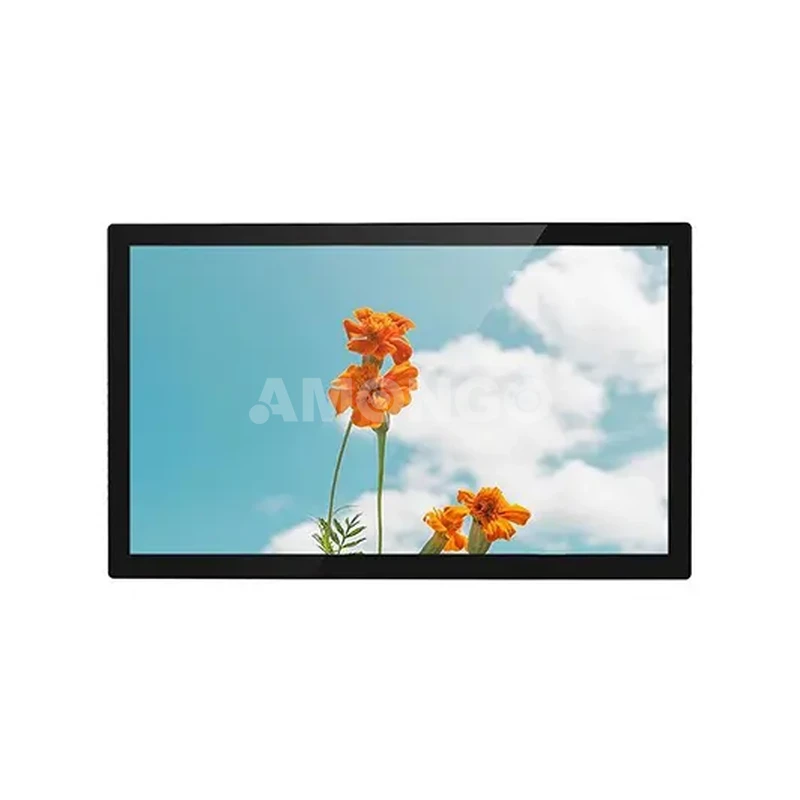

AMG-21IPRV01T1 display device is a high-brightness screen with a brightness of up to 1000 NITS. The screen surface features UV + AG functions, which enhance the screen's lifespan. It is suitable for outdoor advertising media, commercial displays, intelligent transportation, city landmarks, indoor touch and other fields.
IP65 front face waterproofing
UV protection
Anti-glare AG coating
Cooling fan
Optical bonding （Optional）
Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
Outdoor digital billboards, public transportation information screens, theme park information guidance screens, campus interactive display windows, unmanned vending machines, and so on
| Technical Specification | |
| LCD | |
| Model Name | AMG-21IPRV01T1 |
| Screen Size | 21.5" |
| Active Display Area(mm) | 476.64(H)x268.11(V) |
| Pixel Pitch(mm) | 0.3(H)x0.3(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 3000:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 178(H);178(V) |
| Response Time（Typ.Tr+Tf） | 18ms |
| Optional | |
| Touch Screen | PCAP Touch（10 points） |
| Light Sensor | Optional |
| Tempered glass | Supprot |
| I/O Interface | |
| Signal Connector | HDMI |
| Power Consumption | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 518*313.9*45.5 |
| Environmental | |
| Operating Temperature | 0~50℃（non-condensation） |
| Storage Temperature | -20~60℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
