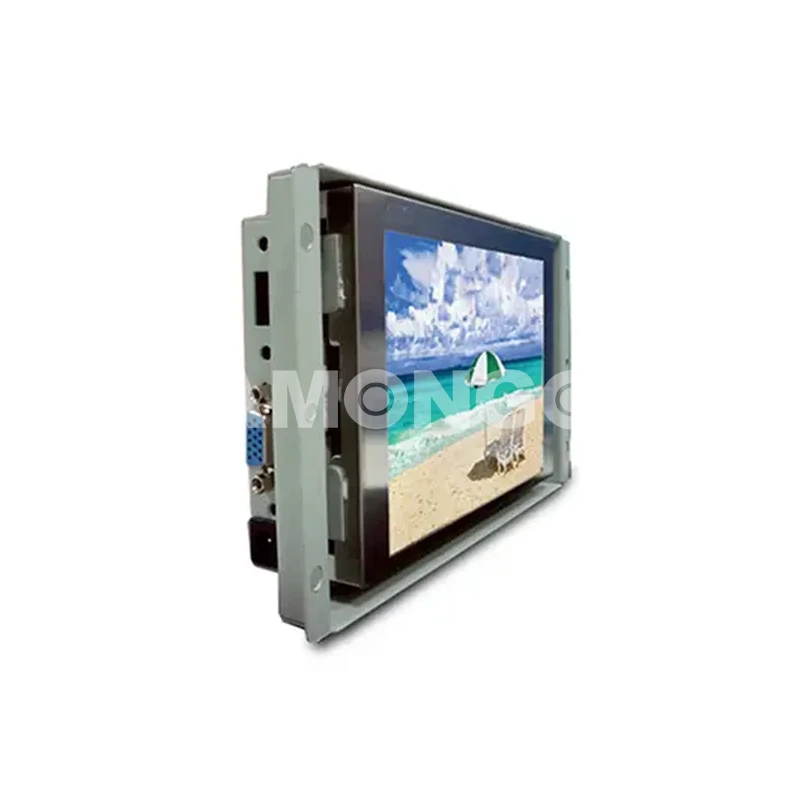

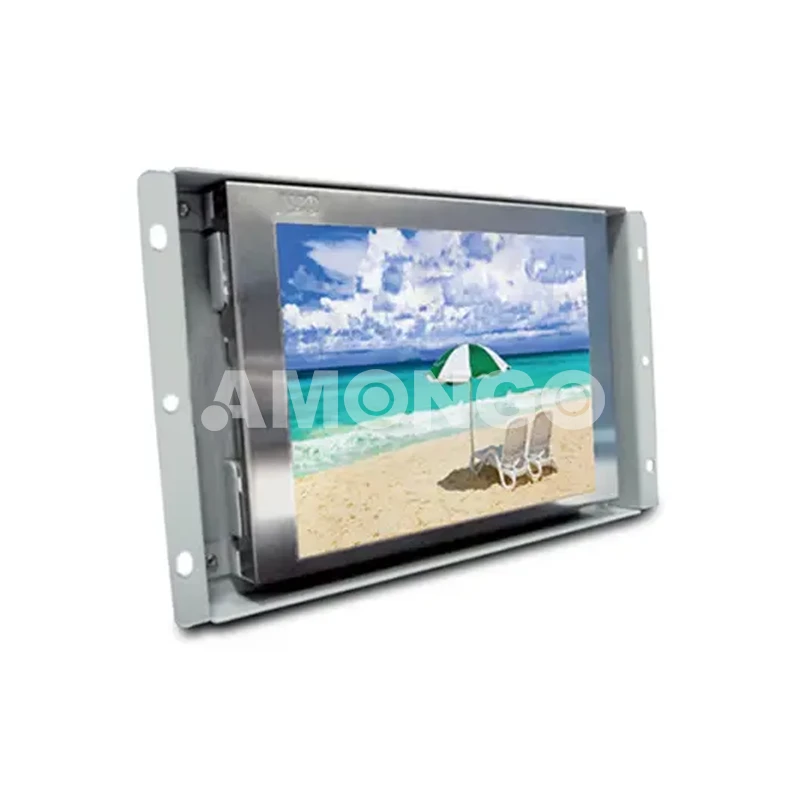

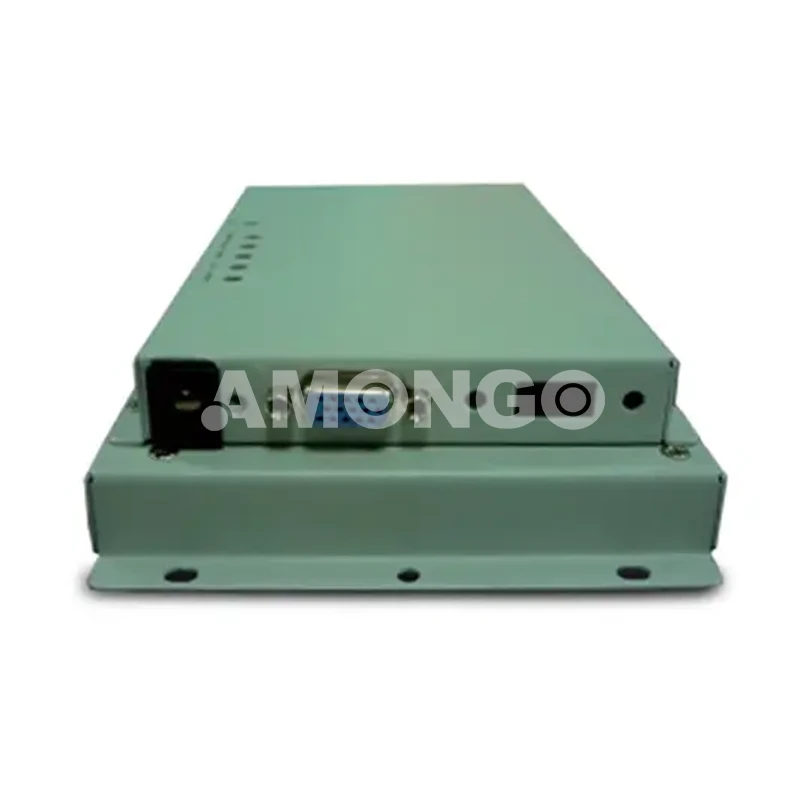

This 5.7-inch Wide Temp Industrial LCD Display .
Key features
·Touchscreen is optional such as PCAP, Resistive etc
·Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel
·Easy-to-install with rack mounting enclosures
·Customization service available
Typical applications
·Industrial Equipment
·Railway etc
Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
Touchscreen is optional such as PCAP, Resistive etc
Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel to meet tough environmental conditions and requirements;
Easy-to-install with rack mounting enclosures.
Customization service available
| Specification | |
| Screen Size | 5.7" |
| Active Display Area(mm) | 115.2(H) x 86.4(V) |
| Pixel Pitch(mm) | 0.18(H)x0.18(V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 640x480 |
| Contrast Ratio | 800:1 |
| Display Color | 16.2M |
| Brightness | 700nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 160(H);140(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Touch Screen | Optional |
| Signal Connector | VGA |
| Power Input | DC 12V |
| Operating Temperature | -30～80℃ |
| Storage Temperature | -30～80℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
