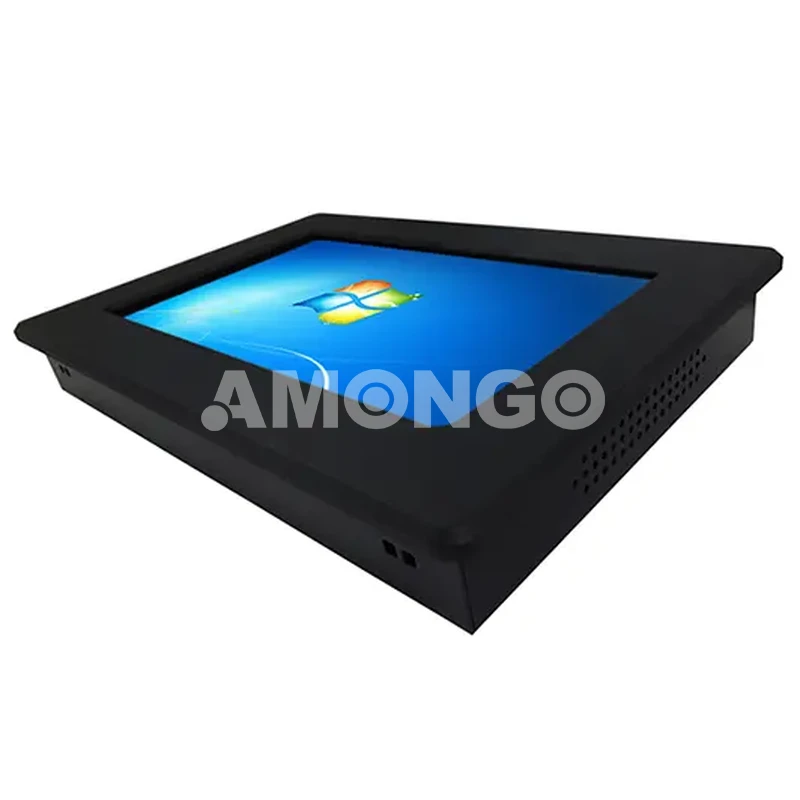

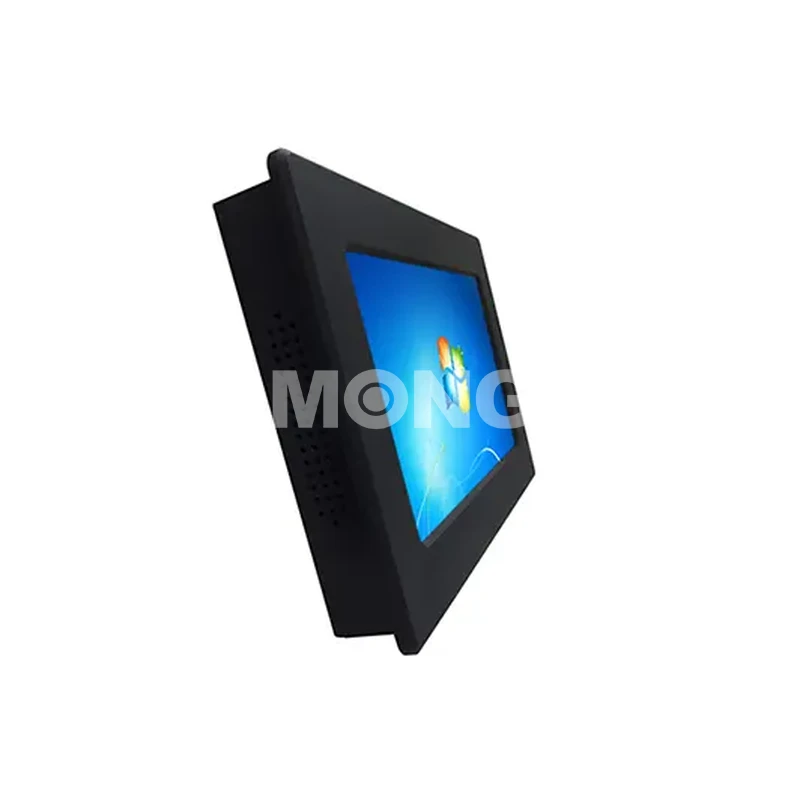

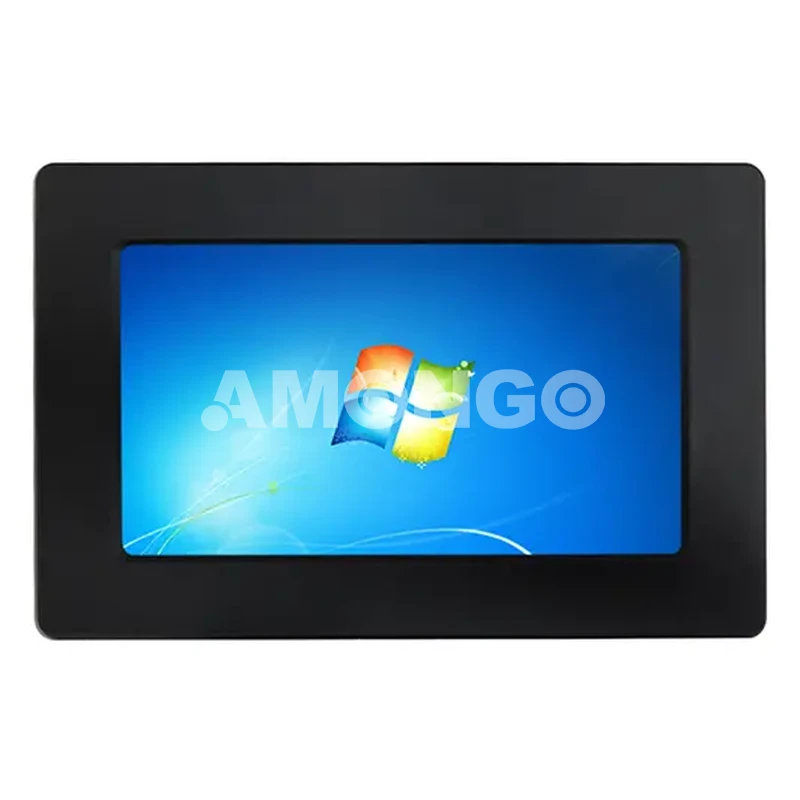

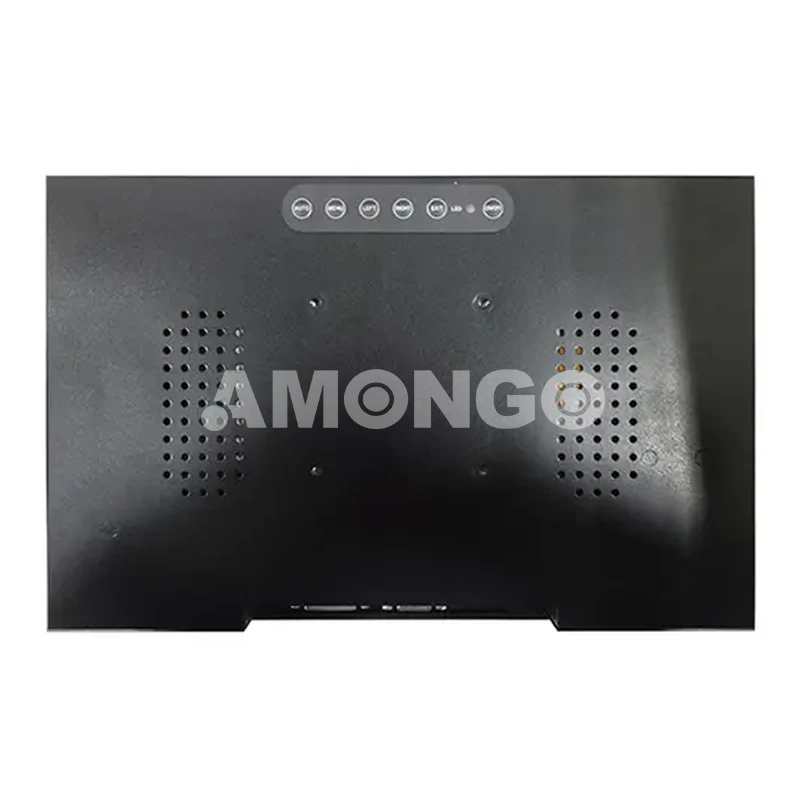

This 11.6-inch Industrial PCAP Touch LCD Monitor with Aluminum Frame Housing.
Key features
·PCAP MultiTouch Screen
·Aluminum Frame Design
·Wide Viewing Angles
·High Reliability and Long Lifetime
·Great heat dissipation
Typical applications
·Industrial Equipment
·Railway etc
| Specification | |
| Screen Size | 11.6" |
| Active Display Area(mm) | 270.37(H)x159.79(V) |
| Pixel Pitch(mm) | 0.13455(H)x0.13455(V) |
| Display Mode | Normally black |
| Display Resolution(pixel) | 16.7M |
| Contrast Ratio | 1920x1080 |
| Display Color | 1000:1 |
| Brightness | 300nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 178(H);178(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | VGA/DVI-D |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | 0～50℃(not clotted) |
| Storage Temperature | -10～60℃(not clotted) |
| Relative Humidity | 5(%RH)～90(%RH) |
