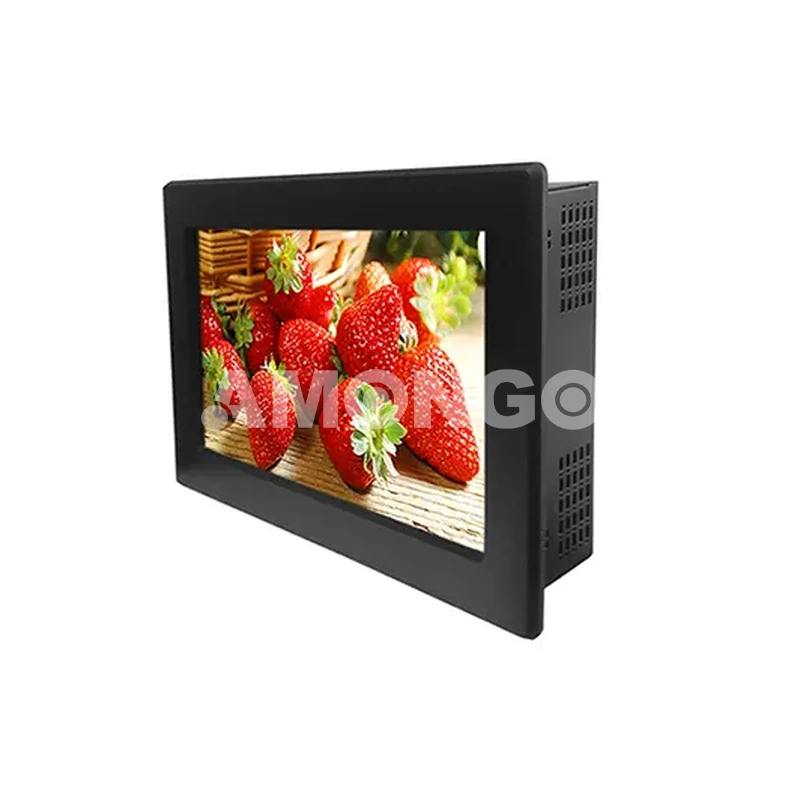

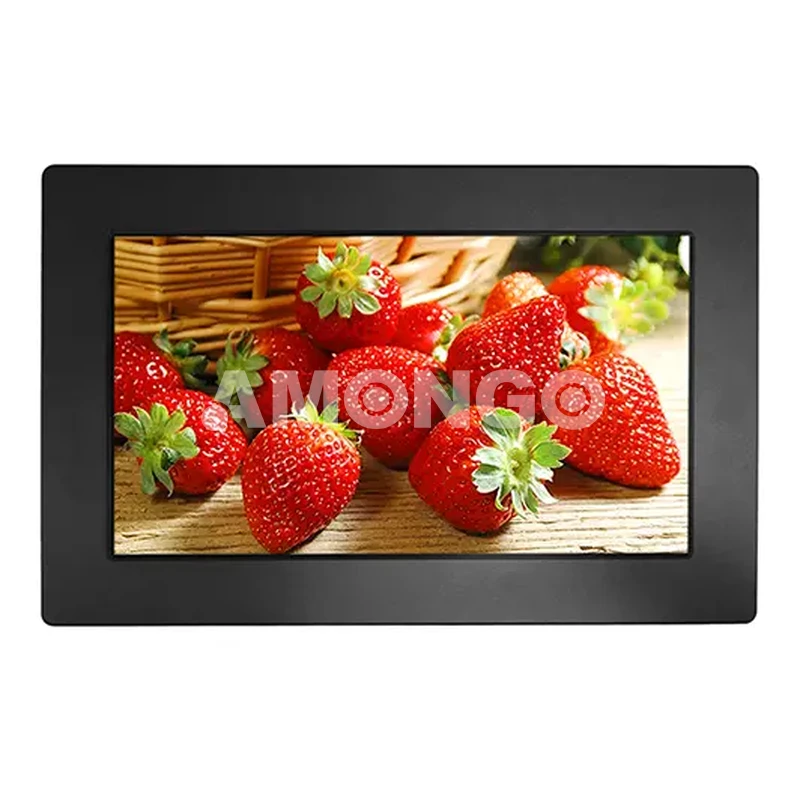

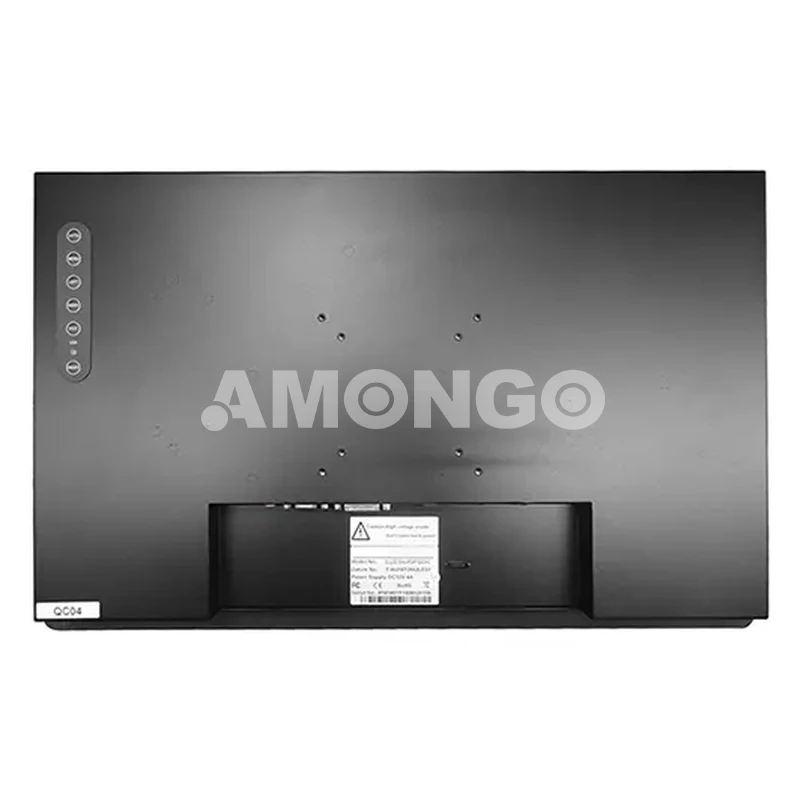

This 18.5-inch industrial-grade LCD panel display is designed for industrial and commercial applications.
Key features
·PCAP Multi Touch Screen
·Aluminum panelfront cover design
·High Reliability and Long Lifetime
·IP65 waterproof, dust-proof,vandal-proof
·High reliability test, stable performance
Typical applications
·IndustrialEquipment
·Kiosk
·Railway etc
| Specification | |
| Screen Size | 18.5" |
| Active Display Area(mm) | 409.8(H)x230.4(V) |
| Pixel Pitch(mm) | 0.3(H)x0.3(V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 16.7M |
| Contrast Ratio | 1366x768 |
| Display Color | 1000:1 |
| Brightness | 250nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 170(H);160(V) |
| Response Time(Typ.Tr+Tf) | 5ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | VGA/DVI-D/HDMI |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | 0～50℃(non condensation) |
| Storage Temperature | -20～60℃(non condensation) |
| Relative Humidity | 5(%RH)～90(%RH) |
