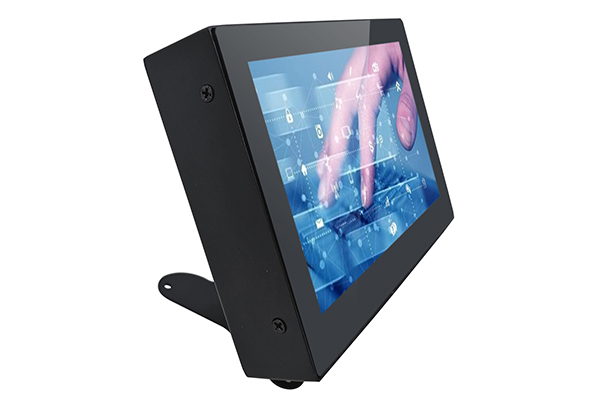

7 inch Rear Mount LCD Monitor

  • 7 inch Rear Mount LCD Monitor
  • Amongo's newly launched rear mount LCD monitor AMG-07OPIT01T1 is a customized model for bus application with the following features:
    • Top brand TFT panel adopted, perfect image with good color;
    • Equipped with industrial-grade components for long term running;
    • LED backlight for low power consumption to save more energy;
    • Advanced PCAP touchscreen technology used for easy operation, easy for maintenance; Front IP65, dustproof, vandal proof;
    • High-end mechanical design to meet tough environmental conditions and requirements;

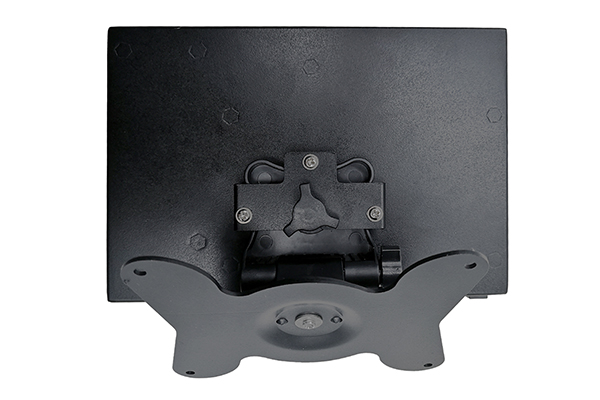

    • Mounting chassis available for easy installation;
    Contact Us

Specifications

Model Name

AMG-07OPIT01T1

Screen Size

7"

Active Display Area(mm)

152.4(H)x91.44(V)

Pixel Pitch(mm)

0.1905(H)x0.1905(V)

Display Mode

Normally white

Display Resolution(pixel)

800x480

Contrast Ratio

500:1

Display Color

16.2M

Brightness

450nits

Backlight

LED

Viewing Angles(CR=10)

130(H);110(V)

Response Time(Typ.Tr+Tf)

30ms

Touch Screen

PCAP Touch(10 points)

Tempered glass

Optional

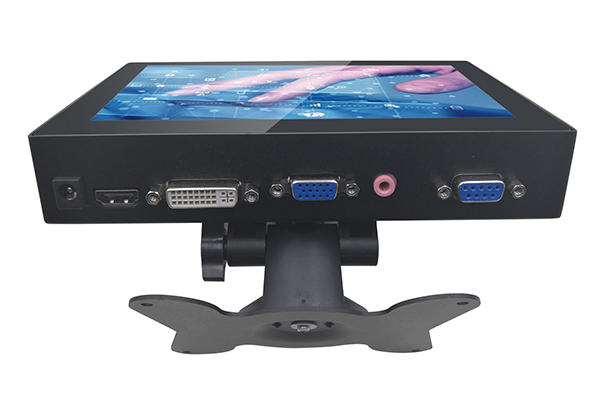

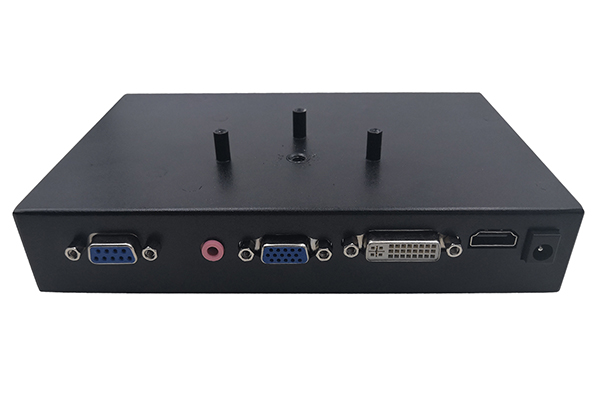

Signal Connector

VGA /DVI/HMDI/Auido

Power Consumption

DC 12V

Touch Controller(Optional)

RS232

Dimension(VxHxT)mm

182.5x124.5x33

Operating Temperature

-20~70℃(non-condensation)

Storage Temperature

-20~70℃(non-condensation)

Relative Humidity

5~90(%RH)
