Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7 long time operation
Touchscreen can be optional from PCAP, Resistive etc

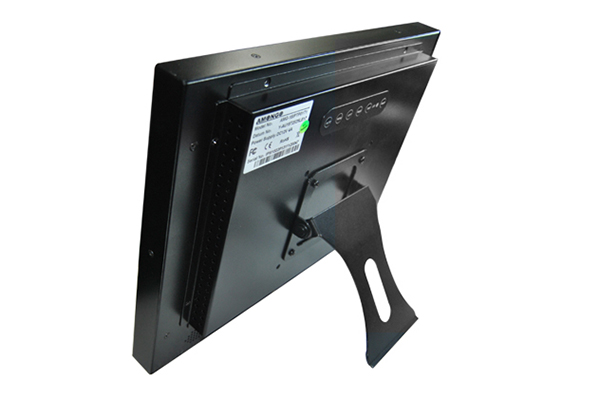

Easy-to-install in a desktop holder with VESA holes backside
Good choice for application for console or control center
Customization solution available
Model Name | AMG-15IPTP01T1 |
Screen Size | 15" |
Active Display Area (mm) | 304.128(H) x 228.096(V) |
Pixel Pitch (mm) | 0.297x0.297 |
Display Mode | Normally white |
Display Resolution (pixel) | 1024x768 |
Contrast Ratio | 700:1 |
Display Color | 16.2M/262K colors |
Brightness (cd/㎡) | 400 |
Backlight | LED |
Viewing Angles (CR =10) | 160(H)X140(V) |
Response Time(Typ.Tr+Tf) | 8ms |
Signal Connector | VGA/DVI/USB/Audio |
Power Consumption | DC 12V |
Dimension(VxHxT) | 346X270X48 |
Operating Temperature | -30～85℃ |
Storage Temperature | -30～85℃ |
Relative Humidity | 5(%RH)～90(%RH) |
