Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
Durable mechanical design to meet tough environmental conditions and requirements;
Molded side frame integrated with PCAP touchscreen for easy installation and maintenance
Front IP65 waterproof, dust proof, vandal proof;
Customization service available;

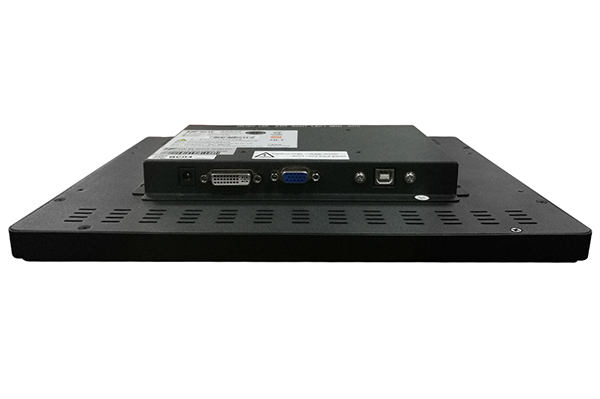

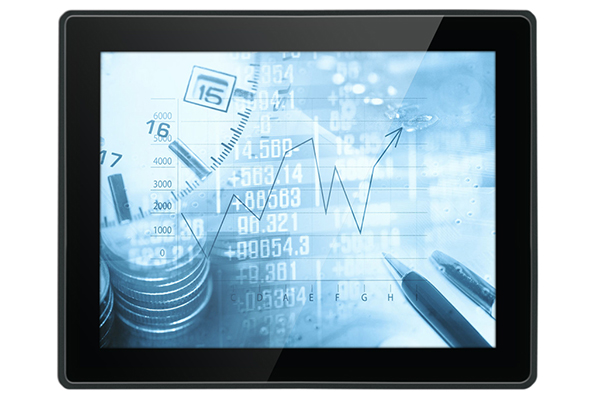

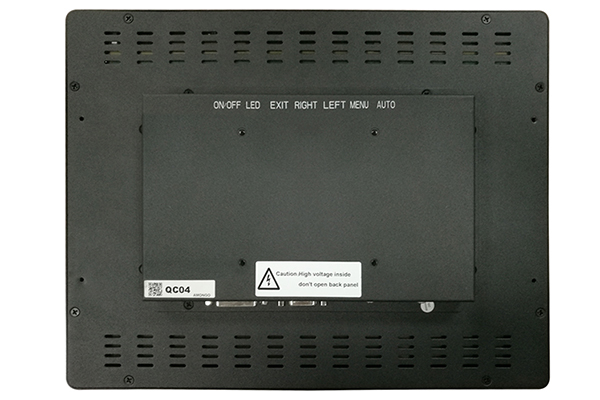

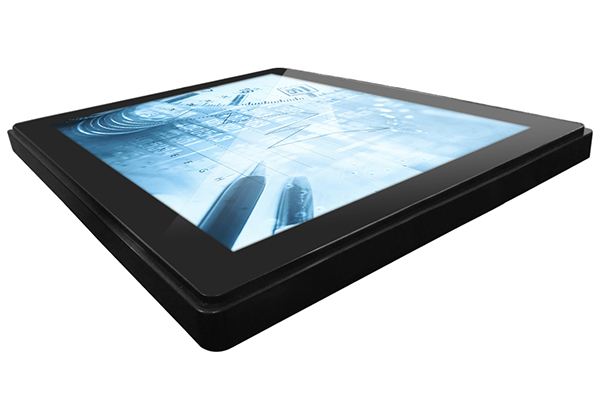

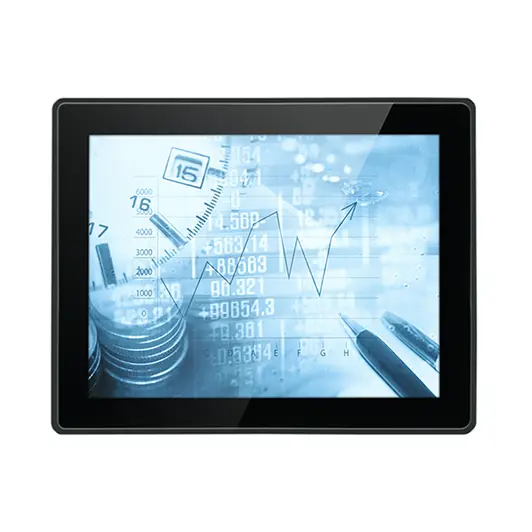

This 12.1 inch industrial display monitors is designed to withstand harsh operational environments.
|
Model Name |
AMG-12OPYH01T1 |
|
Screen Size |
12.1" |
|
Active Display Area (mm) |
245.76(H)x184.32(V) |
|
Pixel Pitch (mm) |
0.24(H)x0.24(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
800x600(1024x768 optional) |
|
Contrast Ratio |
700:1 |
|
Display Color |
16.7M |
|
Brightness (CD/㎡) |
350nits |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
160(H);140(V) |
|
Response Time(Typ.Tr+Tf) |
8ms |
|
Signal Connector |
VGA/DVI-D/USB |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
290.4x228.9x40 |
|
Operating Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
|
Touch Screen |
PCAP Touch(10 points) |
