Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
Durable mechanical design to meet tough environmental conditions and requirements;
Full flat surface design, for easy installation and maintenance;
Aluminum side frame color option: silver or black;
Customization service available
Model Name | AMG-15OPDX70T1 |
Screen Size | 15" |
Active Display Area (mm) | 304.128(H)x228.096(V) |
Pixel Pitch (mm) | 0.297(H)x0.297(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 1024x768 |
Contrast Ratio | 700:1 |
Display Color | 16.7M |
Brightness (CD/㎡) | 250/350/450nits |
Backlight | LED |
Viewing Angles (CR =10) | 160(H);140(V) |
Response Time(Typ.Tr+Tf) | 8ms |

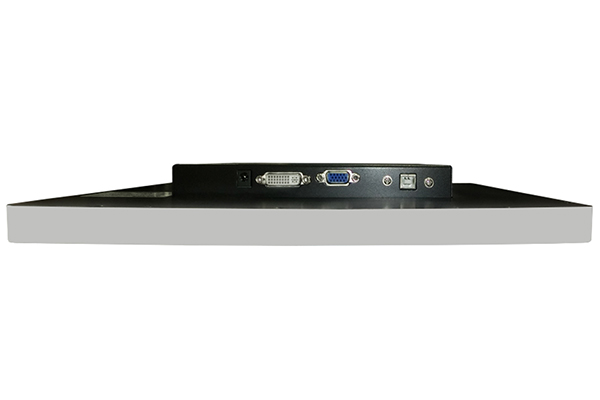

Signal Connector | VGA/DVI-D/USB |
Power Consumption | DC 12V |
Dimension(VxHxT) | 349.8x273.8x41.9 |
Operating Temperature | -20~70℃ |
Storage Temperature | -30~80℃ |
Relative Humidity | 5(%RH)~90(%RH) |
Touch Screen | PCAP Touch(10 points) |
