Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 longtime use;
Durable mechanical design to meet tough environmental conditions and requirements;
Side frame with flange design for easy installation and maintenance of the 17 inch widescreen LCD monitor;
Molded side frame integrated with touchscreen for front IP65 waterproof;
Customization service available;
Convex full flat fillet design
PCAP Multi touch screen
Plastic frame, rugged steel housing
Privacy film optional
High reliability and long lifetime
IP65 waterproof,dust-proof,vandal-proof
Electromagnetic Pen/Privacy Film optional
|
Model Name |
AMG-17OPGD01T3 |
|
Screen Size |
17" |
|
Active Display Area (mm) |
337.920(H)x270.336(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
1280x1024 |
|
Contrast Ratio |
1000:1 |
|
Display Color |
16.7M |
|
Brightness (CD/㎡) |
250/300/350nits |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
170(H);160(V) |
|
Response Time(Typ.Tr+Tf) |
5ms |
|

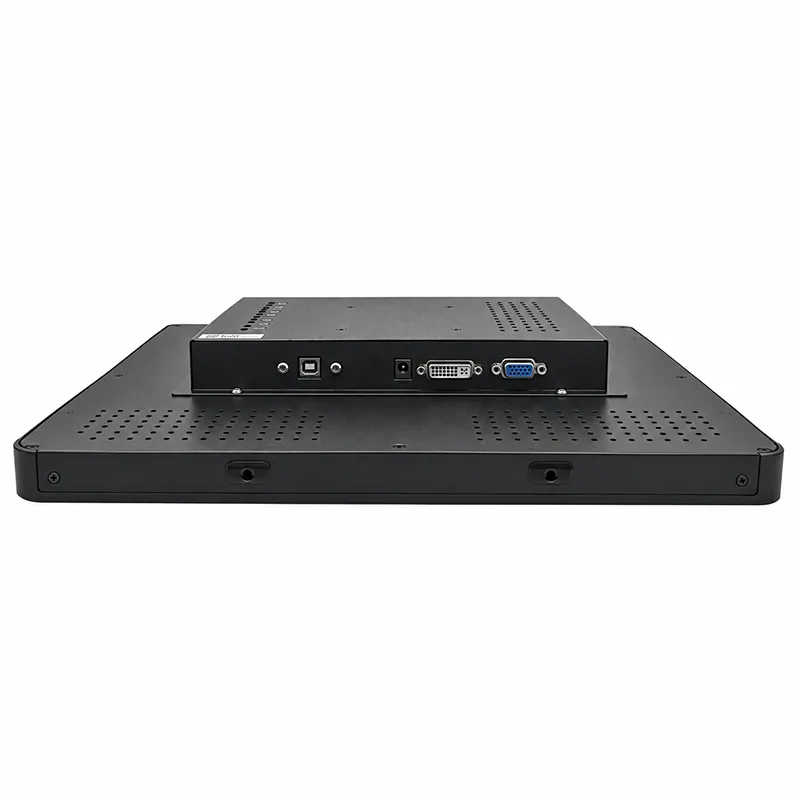

Signal Connector |
VGA/DVI-D/USB |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
391x323.4x59.2 |
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
|
Touch Screen |
PCAP Touch(10 points) |
