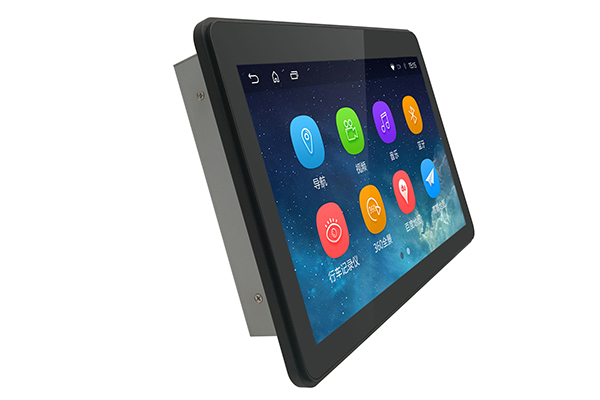

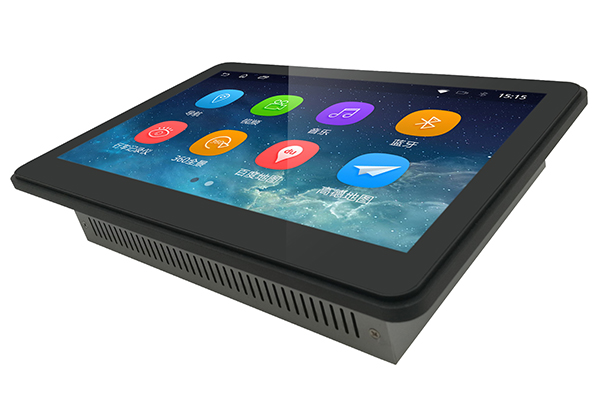

13.3 Inch Android All-In-One Panel PC

  • 13.3 Inch Android All-In-One Panel PC
  • The 13.3 inch industrial all in one computer AMG-13PPC01T2 customized by Amongo is widely installed in different applications with the following features:
    • High quality LCD panels with perfect image effect and wide view angles;
    • Latest Android OS, supporting Ethernet / Wi-Fi / Bluetooth / 4G network;
    • Full flat surface design to support front IP65 waterproof, dust proof and vandal proof with tempered glass;
    • Stable quality, high reliability to ensure the long time operation during bad environment;
    • Suitable solutions for all the projects related with AI and IoT ;
    Application: IoT, Kiosks,
    Contact Us

Specifications

System

Model Name

AMG-13PPC01T2

CPU

RK3399 Dual Cortex A72+Quad core A53 64bit CPU

RAM

2GB(4GB Optional)

ROM

16GB( 8 / 32 / 64GB Optional)

OS

Android 7.1

USB ports

2 x USB 3.0

LAN

4G/3G, 2 x Ethernet, WiFi, GPS Support

SD Card

Support

LED ports

2 x LED

Speaker port

1 x Speaker

Tel port

1 x Telephone

LCD

Screen Size

13.3"

Active Area(mm)

293.76(H)x165.24(V)

Pixel Pitch(mm)

0.153(H)x0.153(V)

Display Resolution

1920x1080

Display Color

Normally Black

Brightness

220nits

Contrast Ratio

600:1

Viewing Angles

160(H);160(V)

Response Time(Tr+Tf)

30ms

Backlight

LED

Optional

Touch Screen

PCAP Touch(10 points)

Tempered Glass

Optional

Light Sensor

Optional

Mechanical

Dimension(VxHxT)mm

334.2x216.4x50

Environmental

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-20~60℃(non-condensation)

Relative Humidity

5~90(%RH)
